Kayaks
Seitech Storage Racks

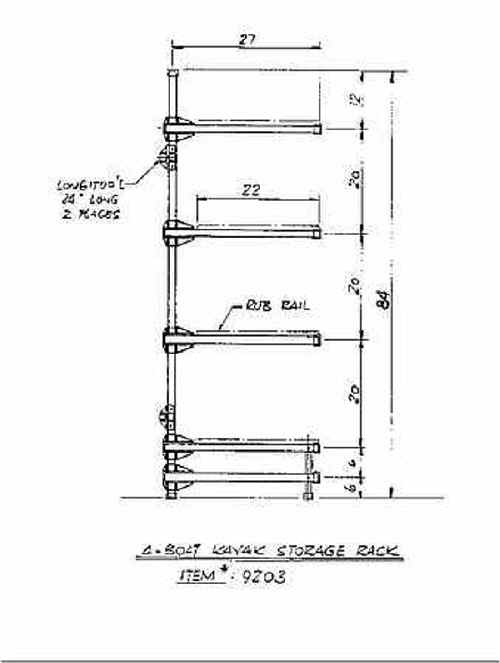

Outline Dimensions
Stationary, Wall and Roll a Round Storage
Racks
Seitech Storage Racks are made of aluminum, engineered
composite joints and stainless steel fasteners. They are available in
fixed, wall mount, and with rolling casters. Ideal for storage or display
units. Racks ship UPS.
Arms on Single Tree
Racks are 27" deep with 22"
of vinyl padding on top of arms
Wall and Double Tree Arms are 36" deep with 31"
of vinyl padding on top of arms
Kayak Rack Longitudinal dimensions (length between support
bars)
are 66" for Wall and Single Tree
84" for Double Tree Models
disregard other dimension on drawings below
Current Model Number 72508
Seitech Rack for 2 Kayaks or Canoes Wall Mount
Rack mounts with lag screws thru predrilled holes
Current Model Number 72500
Seitech Kayak Rack for 2 Kayaks Stationary
Current Model Number 72500 with Optional Caster Kit
Seitech Kayak Rack for 2 Kayaks on Rolling Casters
Full Wheel Casters are lockable
Current Model Number 72509
Seitech Rack for 3 Kayaks or Canoes Wall Mount
Rack mounts with lag screws thru predrilled holes
Current Model Number 72501
Seitech Kayak Rack for 3 Kayaks Stationary
Current Model Number 72501 with Optional Caster Kit
Seitech Kayak Rack for 3 Kayaks with Rolling Casters
Full Wheel Casters are lockable
Current Model Number 72510
Seitech Rack for 3 Kayaks or Canoes Wall Mount
Rack mounts with lag screws thru predrilled holes
Current Model Number 72502
Seitech Kayak Rack for 4 Kayaks Stationary
Current Model Number 72502 with Optional Caster Kit
Seitech Kayak Rack for 4 Kayaks with Rolling Casters
Full Wheel Casters are lockable
Current Model Number 72506
Seitech Rack for 6 Kayaks or Canoes Stationary
Current Model Number 72506 with Optional Caster Kit
Seitech Rack for 6 Kayaks or Canoes on Rolling Casters
Full Wheel Casters are lockable
Current Model Number 72507
Seitech Rack for 8 Kayaks or Canoes Stationary
Current Model Number 72507 with Optional Caster Kit
Seitech Rack for 8 Kayaks or Canoes on Rolling Casters
Full Wheel Casters are lockable
How To Anchor and Bolt
Down Storage Racks
|
